Programmable

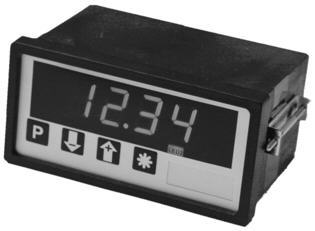

LowCost Digital Panel Meter Model

UM 3301

Highlights

  • Analog Input 0-10 V, 0/4-20 mA
  • LED-Display, red, 4 decades, 14 mm
  • Display range -999...9999
  • DIN Housing 96 x 48 mm
  • Free scaling
  • Isolated Power Supply 6 - 36 VDC or 230 VAC
  • Plug-In Screw Terminal
  • Three programmable front buttons
  • Input Ranges
    • Voltage 0-10 V
    • Current 0-20 mA
    • Current 4-20 mA
    • Accuracy 0,05 % ±1 Digit
    • Resolution 12 Bit
  • Software Functions
    • Scaling factor
    • Digital filtering
    • Taring
    • Min/Max detection
    • Display test
    • Programmable decimal point
    • Programmable functions of the three push buttons at the front
  • Power Supply
    • 5 - 36 V DC isolated
    • 230 V AC isolated
to previous site to overview site to next site
UM 3301
to the offer form
  Download catalogues, data sheets, manuals, in german, english and french Download: PDF-File manual german Download: PDF-File catalogue german Download: PDF-File catalogue english Download: PDF-File datasheet english Download: PDF-File datasheet german Download: PDF-File manual english
There is not available yet all
documents in each language
